Node Panel

Naming correction

In the GUI itself this dock is titled "Node Table" (QDockWidget("Node Table", ...) — glyphviz_gl/main_window.py:903), and its widget class is NodeTableView (glyphviz_gl/node_table.py). It is not a hierarchy tree — see below. This page keeps the "Node Panel" filename/title for site navigation continuity, but the correct in-app name is Node Table.

What the Node Panel (Node Table) actually is

It's a flat, sortable, filterable QTableView — one row per node, columns for the node's raw attributes. There is no tree structure, no expand/ collapse, no indentation by hierarchy depth, and no drag-and-drop reparenting. Parent/child relationships are visible only as a plain Parent column holding the parent's node ID (_COLUMNS — glyphviz_gl/node_table.py:11-32).

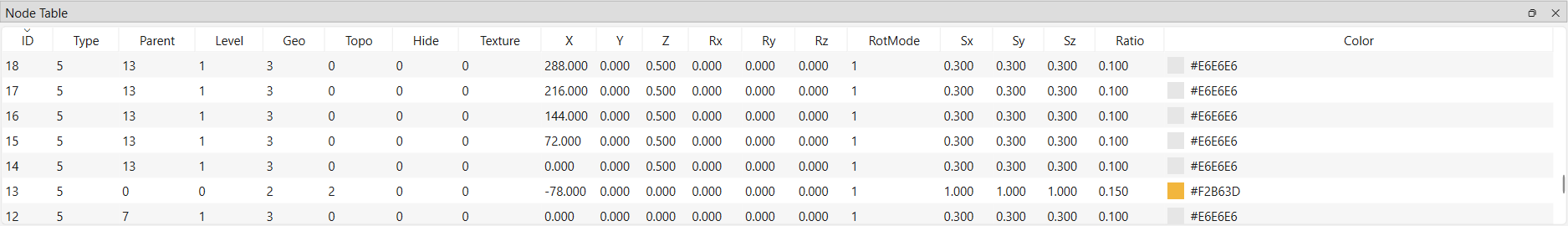

Node Table, populated

Columns, in order: ID, Type, Parent, Level, Geo, Topo, Hide, Texture, X, Y, Z, Rx, Ry, Rz, RotMode, Sx, Sy, Sz, Ratio, Color (node_table.py:11-32). Every column is sortable by clicking its header (setSortingEnabled(True) — node_table.py:106); the Color column shows both a swatch and hex text.

Confirmed capabilities

  • Multi-select: ExtendedSelection mode — click, Ctrl+click, Shift+click, and drag all work as in any standard list/table (node_table.py:105).
  • Selection sync with the Viewer: bidirectional. A Viewer click/rubber-band selection replaces the table's selection (select_by_id/select_by_ids — node_table.py:147-189, wired from _on_viewport_pick* — main_window.py:1267-1277), and a table selection change highlights the same nodes in the Viewer and repopulates the Properties Panel inspector (_on_table_selection — main_window.py:1281-1307).
  • Double-click a row: frames/zooms the Viewer camera on that node (_on_table_double_click → Viewport.focus_on_node — main_window.py:1796-1800).
  • Live refresh: editing a node via the Properties Panel or a Viewer drag updates that row in place (refresh_node — node_table.py:191-198).

Confirmed absent

  • No expand/collapse or indentation — it's a table, not a QTreeView.
  • No drag-and-drop reparenting — node_table.py never calls setDragEnabled/setAcceptDrops, and there's no drop-handling code anywhere in glyphviz_gl/.
  • No right-click context menu — no customContextMenuRequested connection or contextMenuEvent override exists on NodeTableView or its dock.

Node creation/deletion/reparenting-by-editing-the-Parent-column all happen through the Properties Panel's Create/Delete groups and the N/Shift+N/Delete keys instead — see Viewer Navigation.

If a real hierarchy-tree view (expand/collapse, drag-to-reparent) is wanted, that would be new functionality, not a documentation gap — flagging per Jeff's request rather than guessing at unbuilt behavior.

Next step

See Properties Panel for what appears once a node is selected, or Viewer Navigation for selecting nodes directly in the 3D scene.
